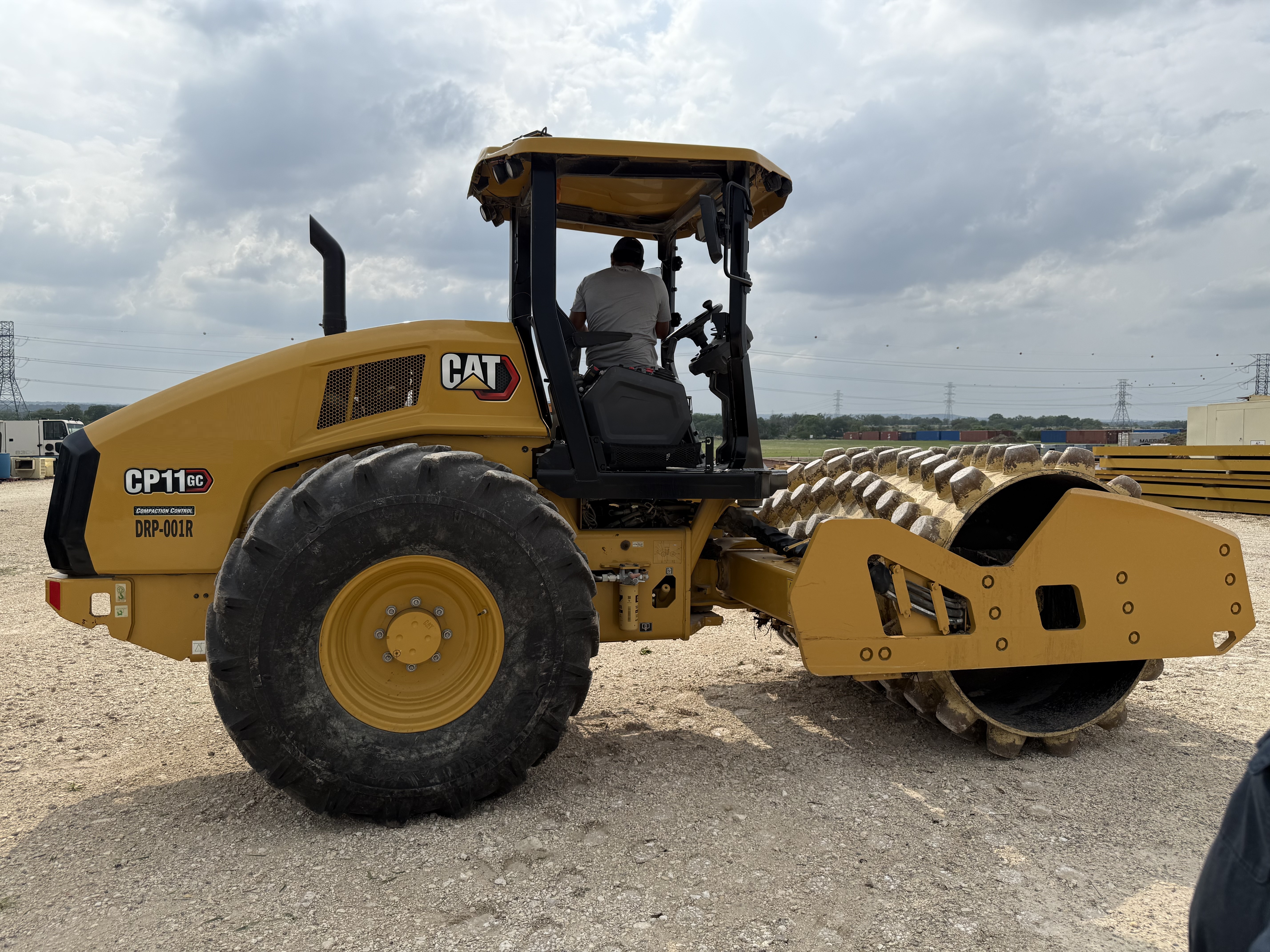

2023 CAT Pad Foot Roller CP11GC
Available to Rent
2023 CAT Pad Foot Roller CP11GC

2023 CAT Pad Foot Roller CP11GC

CP DRP-001R

Location : TX Comfort 78013
DAILY RENT$585
WEEKLY RENT$1,463
MONTHLY RENT$4,022
Get a Quote
Calculate Delivery
Get a Quote Calculate Delivery

Specifications

Make
CAT
Model
CP11 GC
Horsepower
118
Capacity
N/A
Fuel Type
Diesel
Weight (LBS)
25600
Year
2023
ASSET NUMBER
CP DRP-001R

Item Description

The CAT CP11GC is a 2023-model pad foot version of Caterpillar’s GC Series soil compactors, tailored for heavy-duty compaction in cohesive and mixed soil applications. Featuring an 84? padfoot drum and robust dual-amplitude vibratory system, it delivers consistent compaction force suitable for trenches, embankments, and subgrades. Powered by a Tier 4 Final/CAT C3.6 engine, it balances performance and fuel efficiency. Operator comfort is enhanced through a modern cab, electronic controls, and telematics connectivity. With optional compaction measurement systems, padfoot versatility, and rugged build quality, the CP11GC is ideal for contractors seeking reliable productivity in medium-sized compaction projects.

Factory Information

GENERAL SPECIFICATIONS

  • Model: CAT CP11GC
  • Type: Single-drum vibratory pad foot compactor
  • Operating Weight: Approx. 25,600 lb (11,600 kg)
  • Engine: CAT C3.6 diesel, Tier 4 Final / Stage V compliant
  • Net Power: Approx. 118 hp (88 kW)

DRUM & COMPACTION FEATURES

  • Drum Width: Approx. 84 in (2.13 m) (same drum used for both smooth and padfoot variants)
  • Pad Height: Approx. 1.77 in (45 mm)
  • Pad Count: Evenly spaced around the drum for cohesive soils
  • Vibration Amplitude: Dual amplitude settings
  • Centrifugal Force: High: approx. 56,200 lbf (250 kN); Low: approx. 33,500 lbf

PERFORMANCE PARAMETERS

  • Max Travel Speed: Approx. 6.8 mph (11 km/h)
  • Turning Radius (inside drum edge): Approx. 12.7 ft (3.9 m)
  • Gradeability: Around 30%
  • Ground Clearance: Approx. 20 in (510 mm)

FLUID & SERVICE CAPACITIES

  • Fuel Tank: Approx. 56 gallons (213 L)
  • DEF Tank: Approx. 5 gallons (19 L)
  • Engine Oil: Approx. 3.1 gallons (11.6 L)
  • Coolant: Approx. 4.9 gallons (18.5 L)
  • Hydraulic Tank: Approx. 6.1 gallons (23 L)
  • Eccentric Weight Housing Oil: Approx. 6.9 gallons (26 L)
  • Axle & Final Drive Oil: Approx. 2.6 gallons (10 L)

HYDRAULIC & DRIVE SYSTEM

  • Transmission: Two-speed hydrostatic
  • Steering: Articulated steering with electronic control
  • Padfoot & Drums: Dual amplitude with padfoot conversion kit

OPERATOR & SAFETY FEATURES

  • ROPS/FOPS-certified cab with ergonomic seat and digital display
  • Rearview camera and backup alarm
  • LED work lights and visibility-enhancing design
  • Standard drum scrapers
  • Optional compaction control (MDP/CMV) for measurement and mapping
  • VisionLink telematics support
