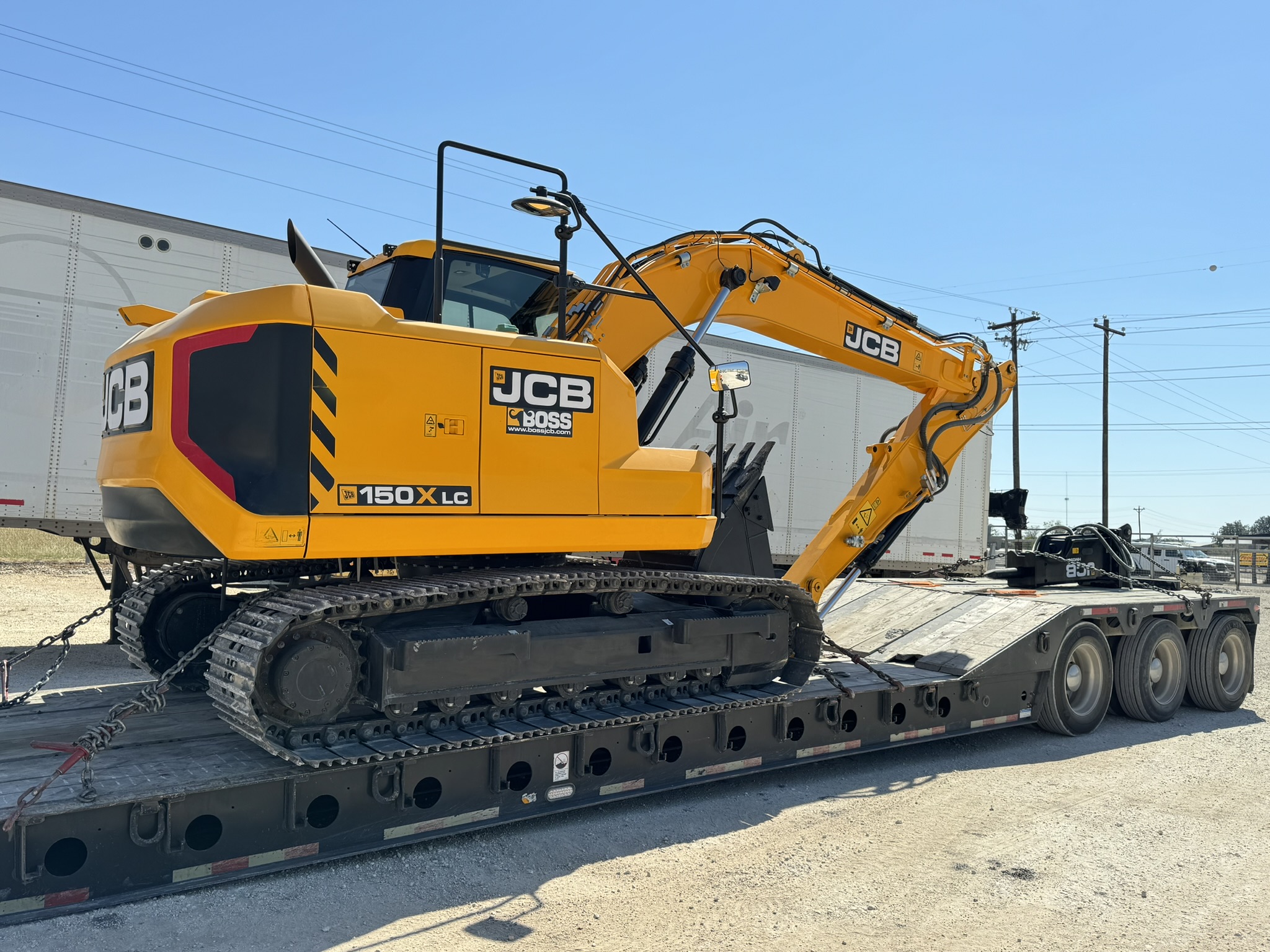

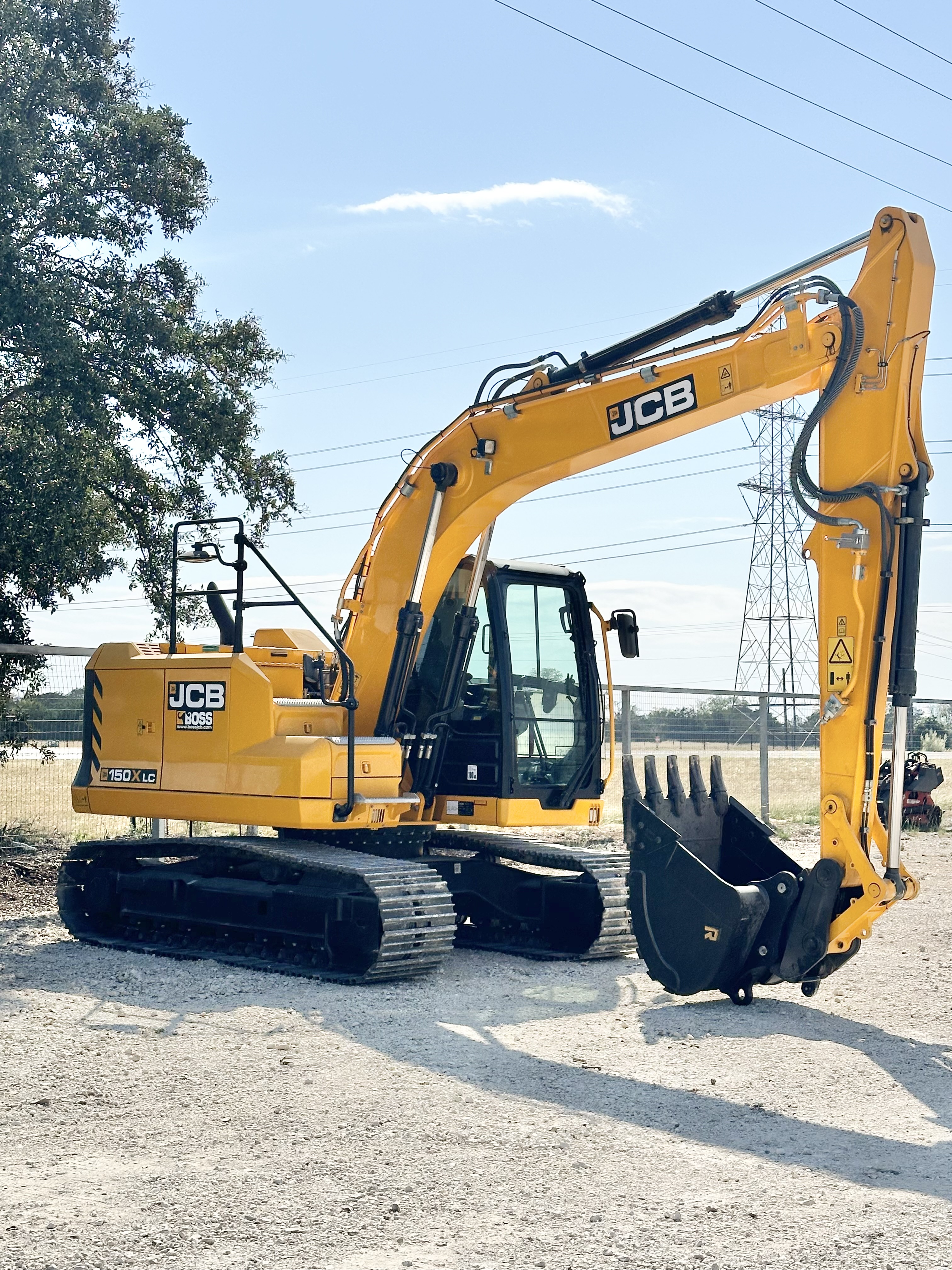

2024 JCB 150X HD 109HP Crawler Excavator with 36” Bucket, Hydraulic Thumb & Quick Coupler — 24’ Max Reach, 15’6” Dig Depth
2024 JCB 150X HD 109HP Crawler Excavator with 36” Bucket, Hydraulic Thumb & Quick Coupler — 24’ Max Reach, 15’6” Dig Depth
2024 JCB 150X HD 109HP Crawler Excavator with 36” Bucket, Hydraulic Thumb & Quick Coupler — 24’ Max Reach, 15’6” Dig Depth
DP131
Location : TX Comfort 78013
Specifications
Item Description

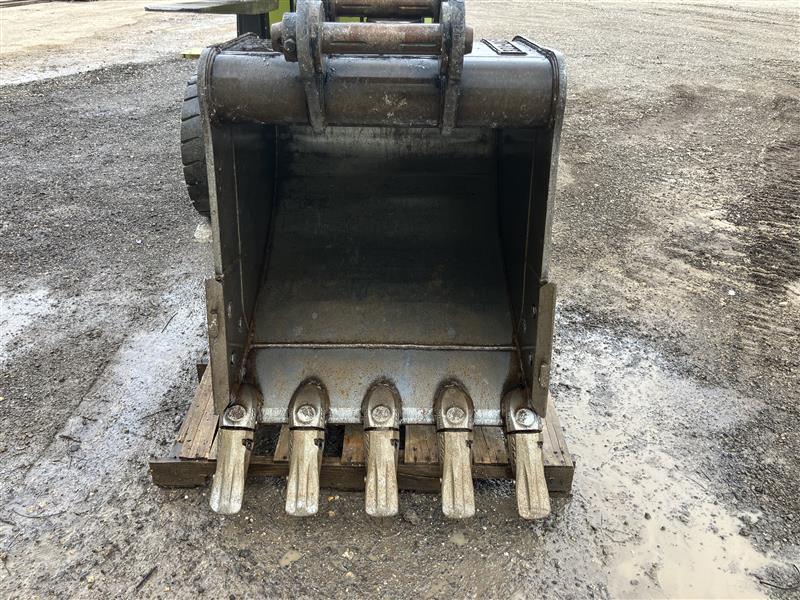

The 2024 JCB 150X HD is a 15-ton class crawler excavator engineered for durability and operator comfort. Equipped with a 109 HP JCB EcoMAX Tier 4 Final engine, it delivers robust performance without the need for a diesel particulate filter (DPF), enhancing uptime and reducing maintenance. The machine features a 36-inch bucket, hydraulic thumb, and quick coupler, making it versatile for various attachments and applications. With a maximum digging depth of 15 feet 6 inches and a reach of 24 feet, the 150X HD is suitable for a wide range of excavation tasks. The spacious CommandPlus cab offers ergonomic controls, a high-quality Grammer seat, and a climate control system with 11 vents, ensuring operator comfort during extended work periods.
Factory Information
Factory Information
- Model: JCB 150X HD
- Engine: JCB EcoMAX T4F
- Power: 109 HP (81 kW)
- Emission Compliance: Tier 4 Final (No DPF)
- Operating Weight: Approximately 39,916 lbs (18,126 kg)
- Maximum Digging Depth: 15 ft 6 in (4.72 m)
- Maximum Reach at Ground Level: 24 ft (7.32 m)
- Bucket Capacity: 0.89 m³ (1.16 cu yd)
- Hydraulic System:
- Main Pump Flow: 120 L/min (31.7 gpm)
- System Pressure:
- Implement Circuit: 250 bar (3,626 psi)
- Travel Circuit: 350 bar (5,076 psi)
- Swing Circuit: 200 bar (2,901 psi)
- Undercarriage:
- Track Width: 600 mm (23.6 in)
- Track Type: Sealed and lubricated
- Track Adjustment: Grease cylinder type
- Dimensions:
- Transport Length: 7.65 m (25.1 ft)
- Transport Width: 2.8 m (9.2 ft)
- Transport Height: 3.36 m (11 ft)
- Cab Features:
- Seat: Grammer seat with 145-degree recline
- Climate Control: HVAC system with 11 vents
- Noise Level: 67 dB(A) inside cab
- Additional Features:
- Hydraulic thumb and quick coupler for enhanced versatility
- Auto-stop and auto-idle functions for improved fuel efficiency
- Power boost feature increases pressure by 9% for up to 9 seconds
- Advanced tool select system for optimized attachment handling
