CAT D8T Dozer
CAT D8T Dozer
CAT D8T Dozer
CP CATD8T
Location : TX Comfort 78013
Specifications
Item Description

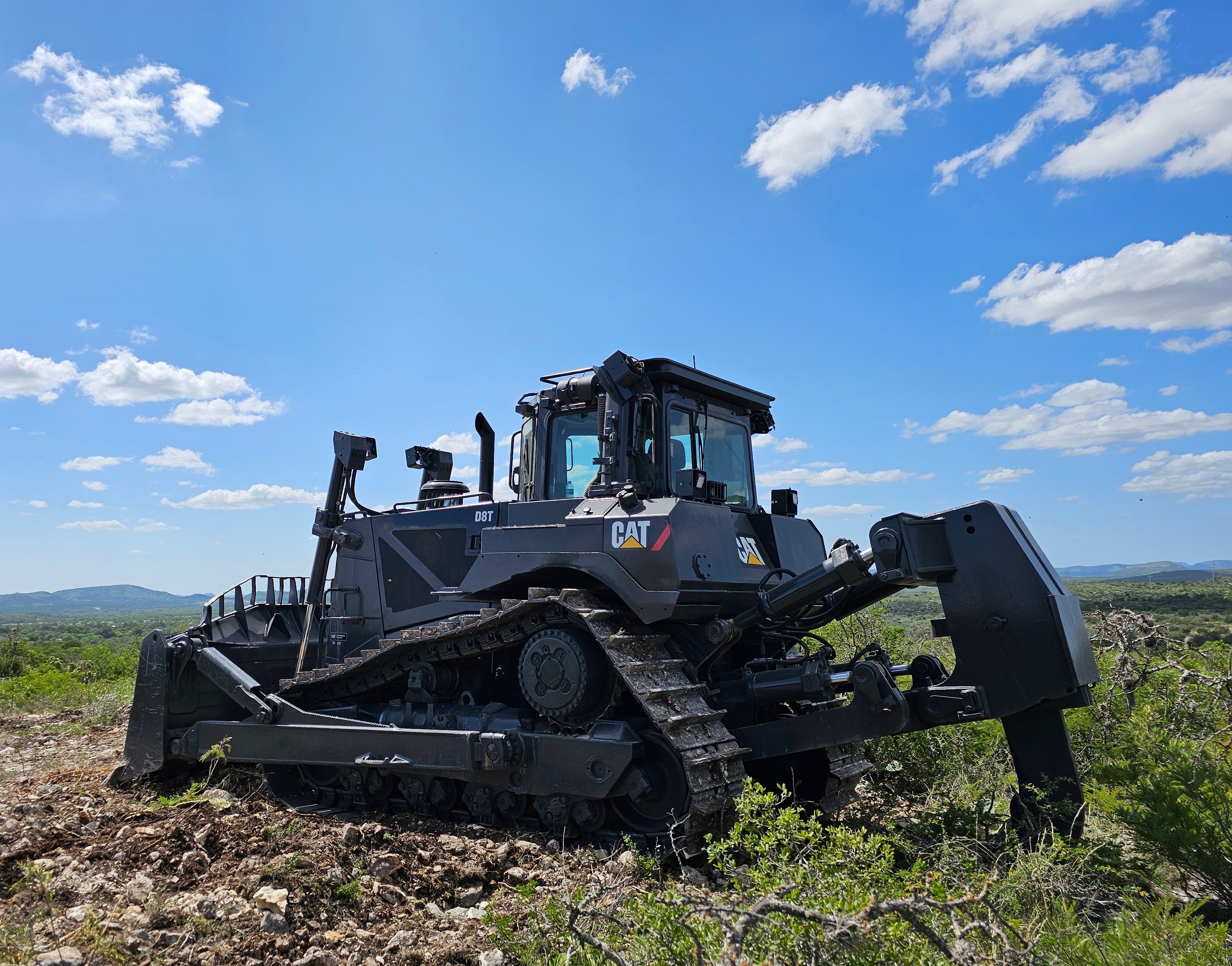

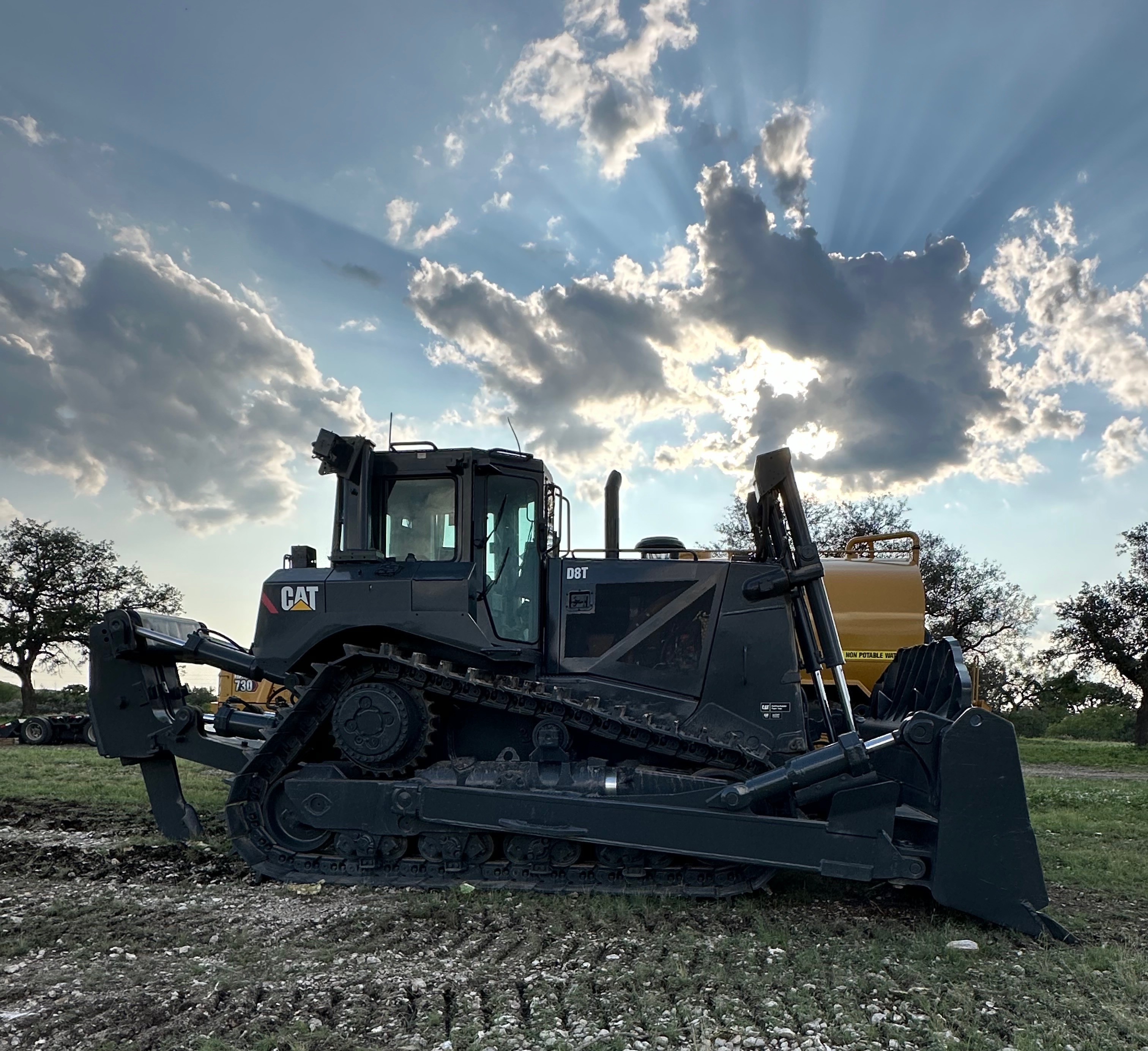

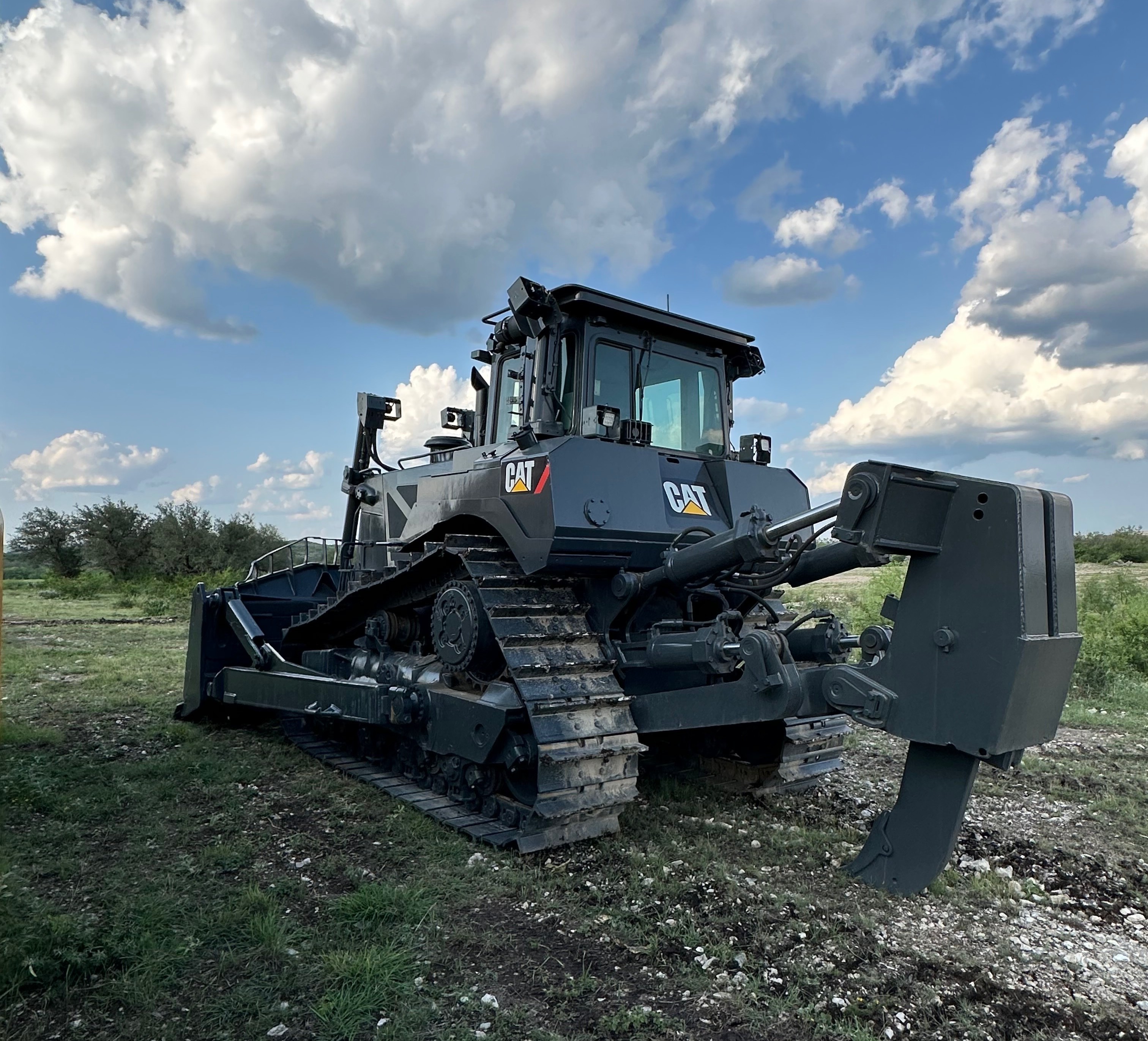

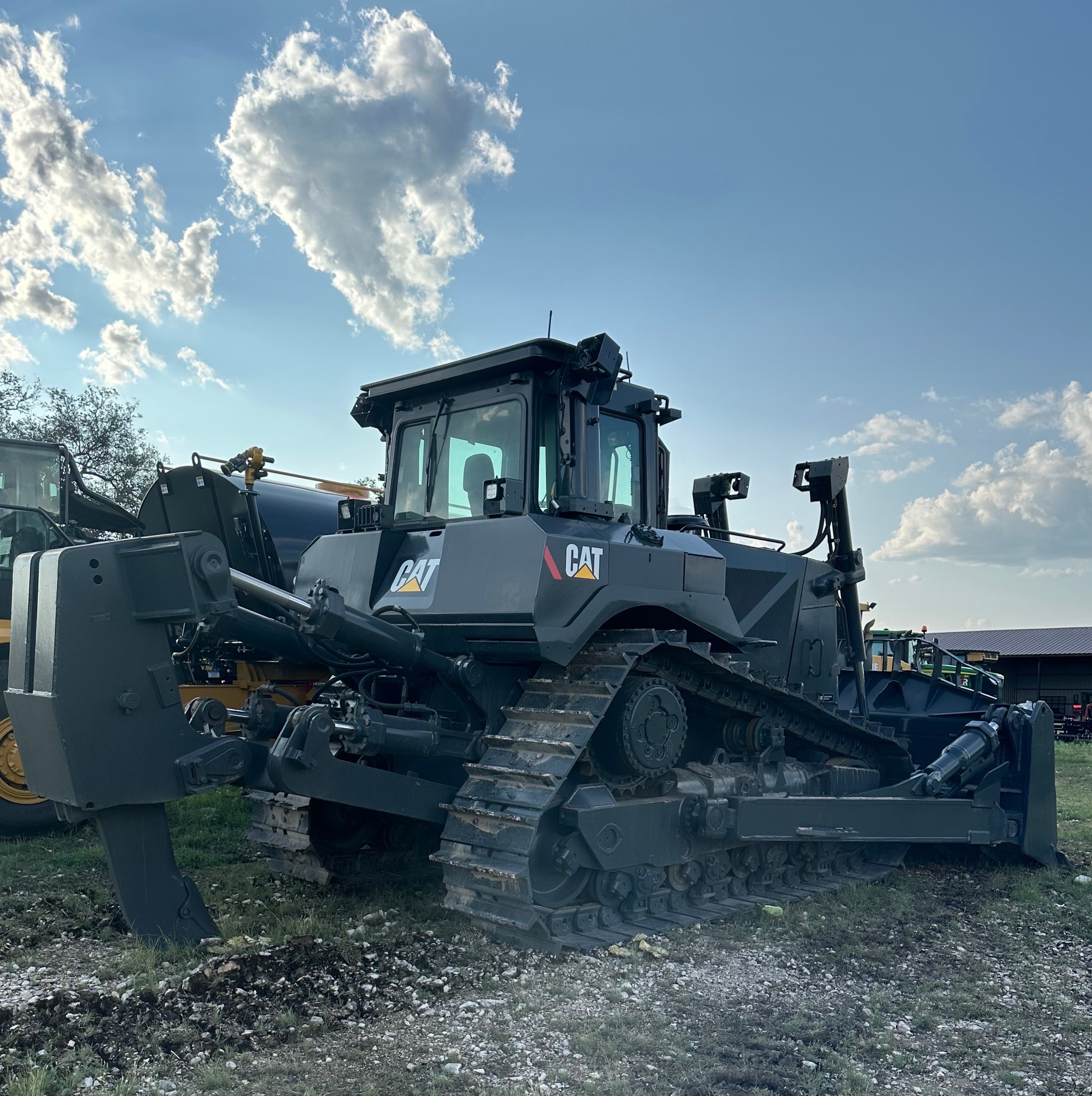

The CAT D8T is a heavy-duty crawler dozer built for large-scale earthmoving, land clearing, and construction applications. Known for its balance of power and precision, the D8T features a high-horsepower C15 engine and an advanced hydraulic and drivetrain system for maximum efficiency and control. With high blade capacity and strong drawbar pull, it excels in pushing, ripping, and grading operations. The operator cab is equipped with modern comforts and intuitive controls, while the undercarriage is engineered for durability and stability on tough terrain. It is a preferred choice for contractors, mining operators, and large-scale construction teams seeking productivity and reliability.
Factory Information
GENERAL SPECIFICATIONS
- Model: CAT D8T
- Type: Track-type tractor (dozer)
- Operating Weight: Approx. 86,900 lb (39,420 kg)
- Engine: CAT C15 ACERT, 6-cylinder diesel
- Net Power: 354 hp (264 kW)
- Emissions: Tier 4 Final / EU Stage IV compliant
PERFORMANCE
- Maximum Torque: 1,550 lb-ft @ 1,300 rpm
- Transmission: 3-speed planetary powershift with torque divider
- Steering: Differential steering with separate steering clutch
- Ground Pressure (Std. Shoe Width): Approx. 12.5 psi (86.2 kPa)
- Drawbar Pull (Max): ~161,674 lbf (719 kN)
DIMENSIONS (WITH SU BLADE)
- Length (with blade): 21.7 ft (6.6 m)
- Width (over tracks): 10 ft 7 in (3.22 m)
- Height (ROPS cab): 11 ft 11 in (3.63 m)
- Ground Clearance: 1.4 ft (0.44 m)
- Track Gauge: 7 ft 7 in (2.3 m)
- Blade Capacity (SU): ~11.7 yd³ (8.96 m³)
- Blade Width (SU): 13 ft (3.96 m)
UNDERCARRIAGE
- Track Shoes (per side): 44
- Track Shoe Width (standard): 22 in (560 mm)
- Track Length on Ground: ~10 ft 9 in (3.28 m)
- Track Roller Frames: Oscillating with sealed and lubricated track (SALT) system
FLUID CAPACITIES
- Fuel Tank: 165 gal (625 L)
- Cooling System: 15.6 gal (59 L)
- Engine Oil: 10.6 gal (40 L)
- Transmission: 17.2 gal (65 L)
- Hydraulic Tank: 23.8 gal (90 L)
CAB & FEATURES
- ROPS/FOPS certified cab with ergonomic controls
- Air-suspension seat, touchscreen display, and rear-view camera
- Auto-blade control (optional)
- Product Link telematics and monitoring system
- Improved visibility, noise isolation, and operator comfort
